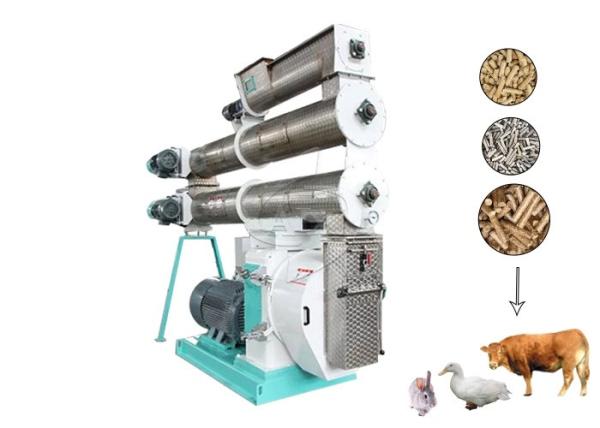

2-5t/h poultry feed machinery for chicken farm making pellet
Poultry feed machinery is for making cattle, geese, pig, duck,
chicken, sheep, rabbit, and other animals, livestock and poultry
feed. 2-4mm diameter chick feed and pig feed .2-5mm rabbit feed ,
4-8mm cattle or sheep feed pellets. pellet length can be adjusted.
Raw material: such as corn, broom corn, wheat, beans, oil seed meal
and other materials.
We can do Turnkey projects for you. According to your site and your
requirement,we can design the flowchart for you.
Main parameters:
| Item | Technical parameters and performance index |
| SZLH250 | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| Capacity (t/h) | 0.5-1 | 2-5 | 2-7 | 3-12 | 3-14 | 4-20 |
Power (Kw) | Main machine | 15 | 37 | 55 | 75/90 | 90/110 | 110/132/160 |
| Screw feeder | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
| Conditioner | 2.2 | 2.2 | 3 | 5.5 | 5.5 | 11 |
| Inner diameter of die (mm) | φ250mm | φ320mm | φ350mm | φ400mm | φ420mm | φ508mm |
| Effective width of die (mm) | 120mm | 120mm | 120mm | 120mm | 120mm | 150mm |
Rotary (rpm) | Die | 328 | 328 | 328 | 248 | 248 | 248 |
| Screw feeder | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
| Conditioner | 300 | 300 | 300 | 270 | 270 | 270 |
| Pellet size (mm) | φ2—φ10mm | φ2—φ10mm | φ2—φ10mm | φ2—φ10mm | φ2—φ10mm | φ2— φ10mm |
Features:
1. The feed raw material are ripened and sterilized due to the
vapour steam. which can improve the digestibility of the feed,
promote the absorption, increase the feed meat ratio and reduce the
production cost.the conditioner is made of stainless steel.
2. Stainless steel door cover and feed hopper, manganese steel
blade, high-end pellet machine cutter seat, granulator main shaft,
hoop hollow shaft are all made of material 40Cr forging parts.
3. Compact structure, beautiful appearance, high yield, less
consumption, easy to use, maintenance and quick.
4. Feeding system of the Small Animal Feed Mill Plant adopts
electromagnetic speed regulating control, speed control, convenient
and full capacity to adapt to the different material requirements.
5. Stainless steel conditioner,304 stainless steel,used for feed
ripening,sterilization,improve,water resistance and output.
6. 304 stainless steel paddles,precise angledesign,reasonable blade
layout,corrosion resistance.
7. All motors are siemens motor.
Turnkey projects:
